$1000 tl1000s project

Post  gus on Fri 09 Sep 2016, 6:41 pm

Bought off Gumtree, bike in pieces ,had been a spill .I had no idea what condition it was in ,or how many pieces missing . If it turned out bad at least I new there was more than a $1000 worth of part I could sell off
I picked it up at night time after driving 1100 kls  one way. They guy said ,do you want to check whats here ," no , lets just chuck every part in the ute .motor in the front thanks". It was pitch black outside so I hoped I left nothing behind .
avatar
gus

Posts : 5493
Join date : 2010-11-23
Age : 66
Location : Cygnet ,Tasmania

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  Chalkie on Fri 09 Sep 2016, 6:48 pm

2WA is right Gus - you are the equivalent of the American Pickers - maybe register the business name "The Two Wheeled Picker", the motto "I turn shit into sugar" I'm impressed! cheers Razz
avatar
Chalkie

Posts : 261
Join date : 2015-12-05
Age : 70
Location : Bayswater, Vic

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  gus on Fri 09 Sep 2016, 6:51 pm

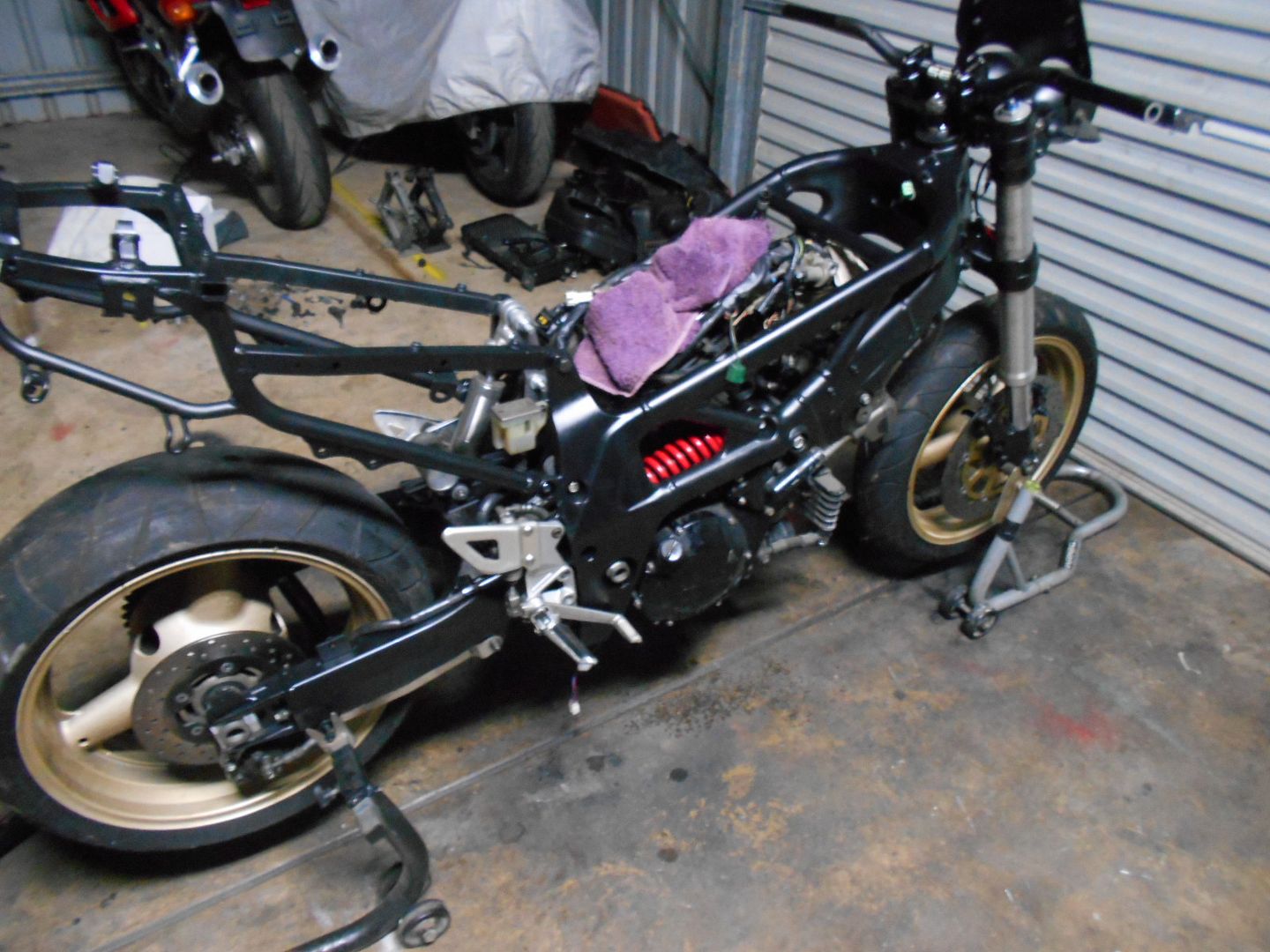

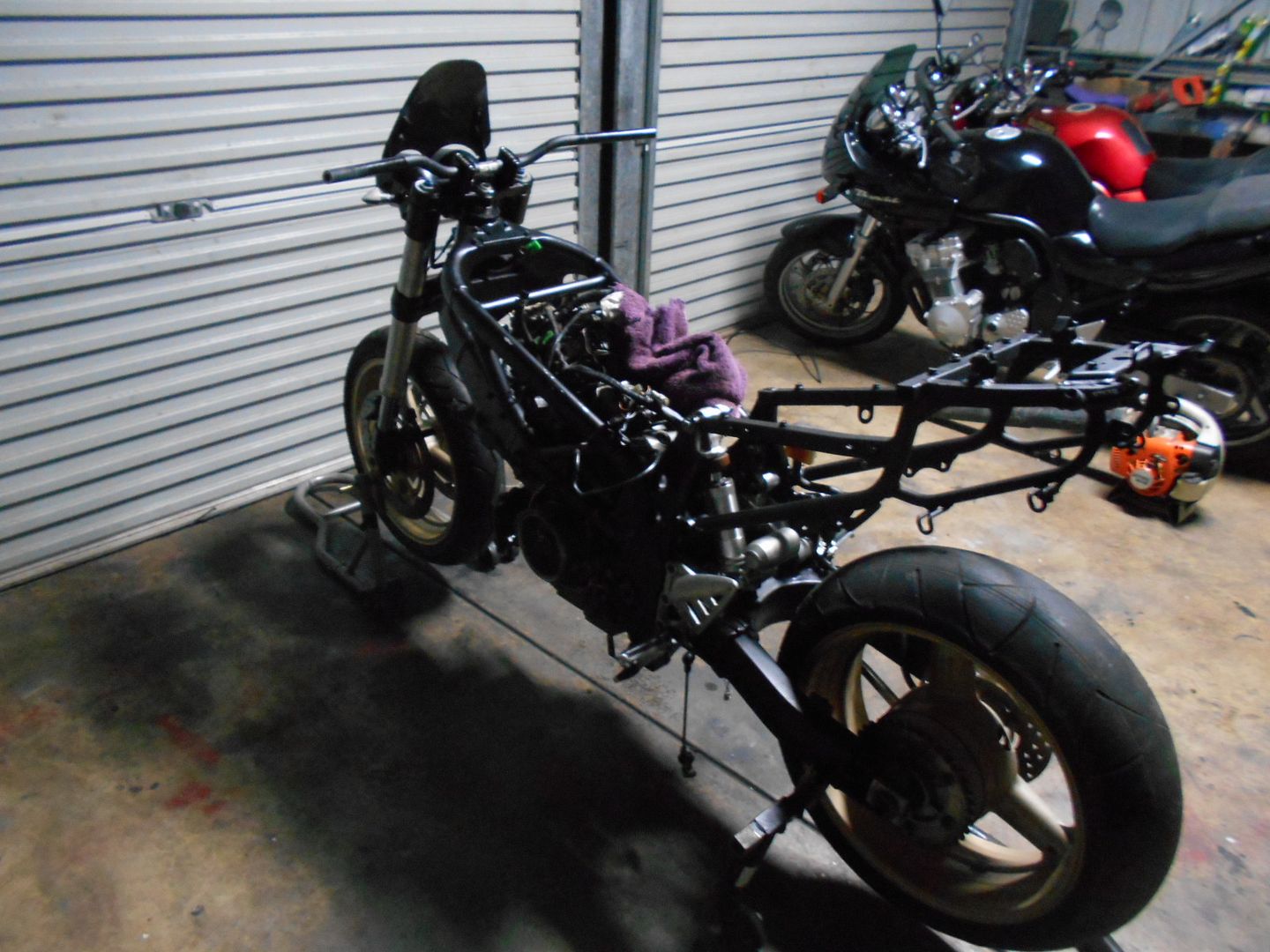

DAY ONE
Sorted parts out around frame . Looks like I bought a streetfighter . Not a fan but lets put it together as it was bought .
The good . Brand new chain and sprockets ,new battery ,R1 yam shock ,Forks in mint condition . There is my $1000 already .

Every thing goes together nicely , r1 shock had not been fitted , took me a while to realise the spring had to be chucked .
Missing one long bolt  .Get rid of the lemon colour on the forks .





I notice the rhs footpeg hanger is broken . I find a replacement that someone has bought . (strange)
avatar
gus

Posts : 5493
Join date : 2010-11-23
Age : 66
Location : Cygnet ,Tasmania

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  gus on Fri 09 Sep 2016, 7:05 pm

And on a happy note , Camilla and Charles (our geese ) have 6 new babies  . Shes not happy with me though . I keep poking her with a stick to check out the goslings.(Charles is ALWAYS grumpy )
avatar
gus

Posts : 5493
Join date : 2010-11-23
Age : 66
Location : Cygnet ,Tasmania

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  reddog on Fri 09 Sep 2016, 9:33 pm

Looking pretty good so far Gus
avatar
reddog

Posts : 2420
Join date : 2010-09-27
Age : 39
Location : Allanson WA

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  paul on Fri 09 Sep 2016, 10:09 pm

Looks like a good buy so far...............Is Charles grumpy because Camilla looks like the other Camilla ? Razz

_________________
Four wheels move the body. Two wheels move the soul.






avatar
paul

Posts : 7012
Join date : 2011-08-19
Age : 65
Location : Morphett Vale Sth. Aust.

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  Ewok1958 on Fri 09 Sep 2016, 10:49 pm

gus wrote:And on a happy note , Camilla and Charles (our geese ) have 6 new babies  . Shes not happy with me though . I keep poking her with a stick to check out the goslings.(Charles is ALWAYS grumpy )

Very Happy , and well done on the machinery!  cheers
avatar
Ewok1958

Posts : 3771
Join date : 2010-08-03
Age : 59
Location : Bemboka, NSW

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  gus on Sat 10 Sep 2016, 6:29 pm

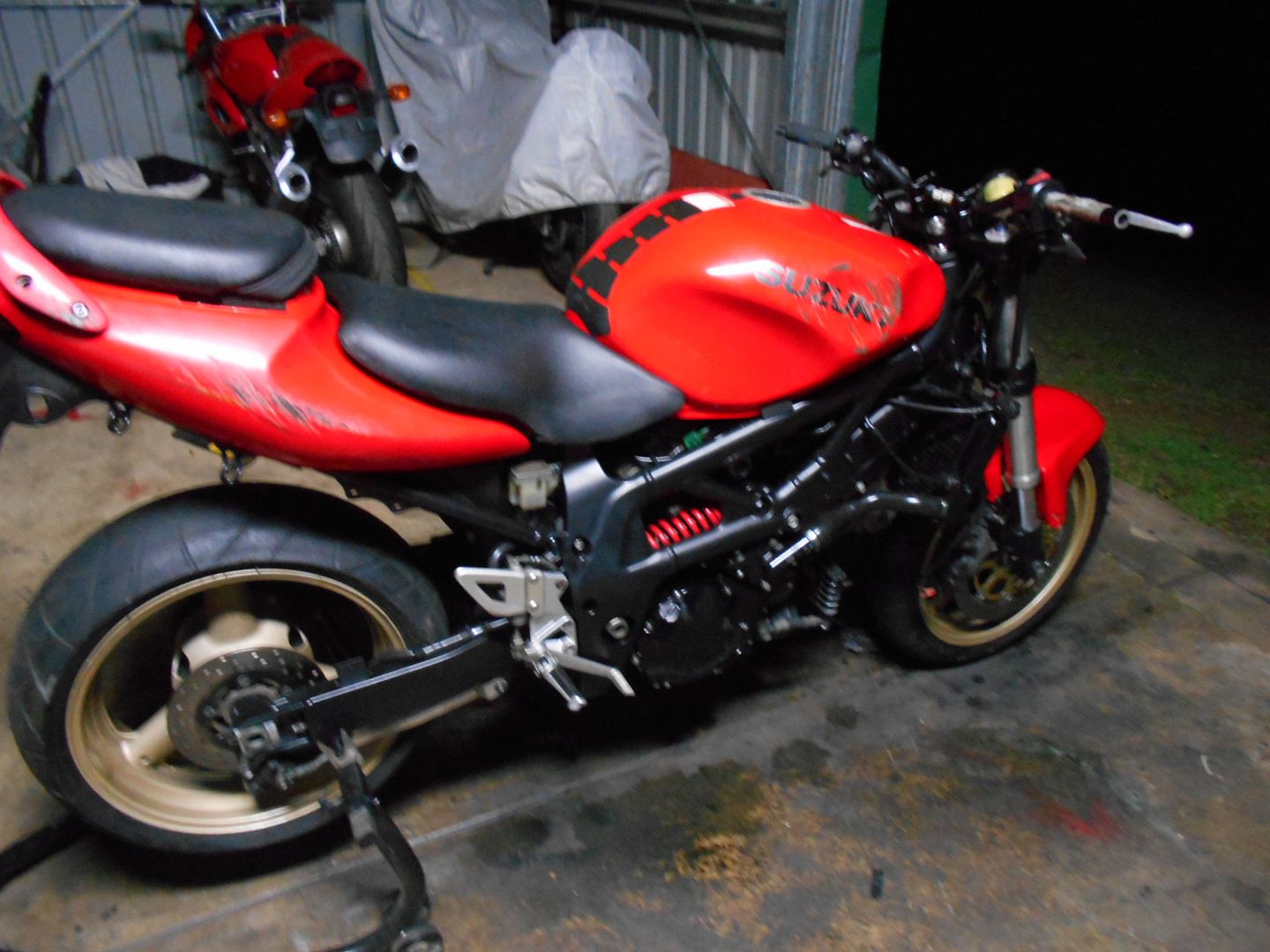

Day 2
R1 shock gets removed . I can use that one a different bike .Standard rotary damper gets fitted .ng
Everything goes well , missing a "throttle body to air box rubber boot ".




Now I have to figure out how this gets wired in , the right way up might help to read it .
avatar
gus

Posts : 5493
Join date : 2010-11-23
Age : 66
Location : Cygnet ,Tasmania

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  barry_mcki on Sat 10 Sep 2016, 8:49 pm

gus wrote:
Now I have to figure out how this gets wired in , the right way up might help to read it .

Its a KOSO DB-01R Multifunction Meter, wiring instructions here .

Good luck with it Gus.

_________________
Hacks - more smiles per mile



Red 2007 GSF-1250S with SRK Premier Sidecar
avatar
barry_mcki

Posts : 1626
Join date : 2010-04-10
Age : 60
Location : Hillwood, Tasmania

View user profile http://g.co/maps/vb84k

Back to top Go down

Re: $1000 tl1000s project

Post  reddog on Sun 11 Sep 2016, 8:56 am

It's starting to look like a motorcycle Smile why was it pulled apart? Hopefully the motor is in ok condition
avatar
reddog

Posts : 2420
Join date : 2010-09-27
Age : 39
Location : Allanson WA

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  gus on Sun 11 Sep 2016, 1:00 pm

It had had a slide down the road .I think it had been pulled apart to tidy it all up . It had a new chain and sprocket (still in packet ) . I have also found a number o new parts to replace the worn ones .I'm hoping that's a good sign .
I just fitted the new chain ,put in into 6th and am about to try and turn the motor over buy rotating the rear wheel .
I decided to walk away for 5mins to get my head ready if it will not turn over . It had no spark plugs fitted . Why any one lets dam air in I have no idea .
I knew the lhs cover was missing but now I realise the stator is in that cover .Not great .
avatar
gus

Posts : 5493
Join date : 2010-11-23
Age : 66
Location : Cygnet ,Tasmania

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  Chalkie on Sun 11 Sep 2016, 1:13 pm

My Bandit's paintwork on the tank is a bit secondhand Gus, I just wonder what your technique is to bring it back and make it look so good.
avatar
Chalkie

Posts : 261
Join date : 2015-12-05
Age : 70
Location : Bayswater, Vic

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  gus on Sun 11 Sep 2016, 6:22 pm

Missed this when motor was out .

The cans show a bent link pipe .

I new the Lh cover was not in the deal but I forgot the stator was attached to it .
avatar
gus

Posts : 5493
Join date : 2010-11-23
Age : 66
Location : Cygnet ,Tasmania

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  gus on Sun 11 Sep 2016, 6:29 pm

The good .
Only parts missing were 2 bolts .
Motor turns over by hand and has good compression .
Oil came out nice and clean .
avatar
gus

Posts : 5493
Join date : 2010-11-23
Age : 66
Location : Cygnet ,Tasmania

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  2wheelsagain on Sun 11 Sep 2016, 8:38 pm

You're a bloody magician Gus. Great find.

_________________
My posts reflect my personal  experience or opinion. You don't have to agree with me.
~ Chris ~
~ 0466 Ask ~
~ My Photography Blog Page ~
~ My YouTube Channel ~
~ Suzuki Bandits Australia Facebook Page ~
~ Half hr from the hills. Two minutes from the coast ~

~ My Bikes ~
 VFR1200F - How Fast Do You Want To Tour?
MV Brutale 800 - Triple Treat
avatar
2wheelsagain
Admin

Posts : 6237
Join date : 2009-08-26
Age : 53
Location : Sale Area Vic

View user profile https://www.youtube.com/channel/UCU-axKVr_wDILSSK0-8GQ1A

Back to top Go down

Re: $1000 tl1000s project

Post  Ewok1958 on Sun 11 Sep 2016, 8:52 pm

2wheelsagain wrote:You're a bloody magician Gus. Great find.

+1 to that.  cheers
avatar
Ewok1958

Posts : 3771
Join date : 2010-08-03
Age : 59
Location : Bemboka, NSW

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  gus on Wed 14 Sep 2016, 7:38 pm

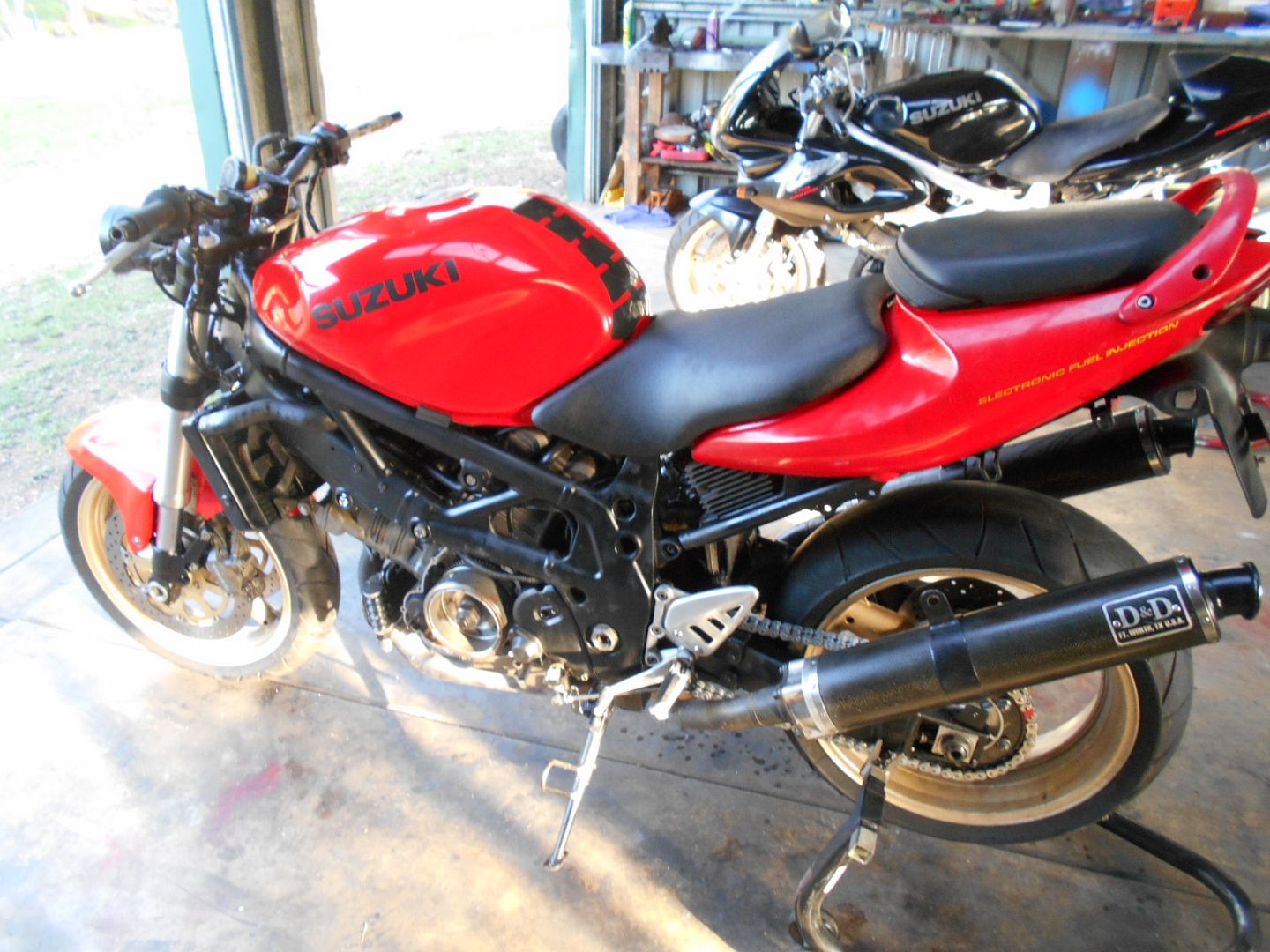

i got it to a condition I thought it should start  . For the next 5 hours I waited for "the vibe " and planets to align before I had the nerve to press THAT button .
I forgot to fix the fast idle lever (choke ) but the time had come . When I got the motor I put some oil in the spark plug holes in case things were stuck .
About second attempt I get a hint it wants to go . About 4th attempt it fires up and fills the shed with smoke from the oil in the chamber .
The 2 geese and 7 goslings which have bedded down for the night in the shed complain . I take pity on them and get worries I may gas them .
I turn it off ready for another go tomorrow .
Sand and paint tail section too late in the day and paint blushes to a matt  . Hoping tomorrow is warm and I'll give it a light spray to get some shine .
Cut rhs exhaust link pipe half way through and bend it back to the right angle . Weld it back up , not well, but its hidden.
avatar
gus

Posts : 5493
Join date : 2010-11-23
Age : 66
Location : Cygnet ,Tasmania

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  Chook on Thu 15 Sep 2016, 7:16 am

gus wrote: About 4th attempt it fires up and fills the shed with smoke from the oil in the chamber .
cheers cheers
avatar
Chook

Posts : 3003
Join date : 2012-01-20
Age : 52
Location : Between the City and Beach, Adelaide

View user profile https://www.facebook.com/groups/154520904856/?fref=ts

Back to top Go down

Re: $1000 tl1000s project

Post  2wheelsagain on Thu 15 Sep 2016, 12:24 pm

You've weaved your magic again.

_________________
My posts reflect my personal  experience or opinion. You don't have to agree with me.
~ Chris ~
~ 0466 Ask ~
~ My Photography Blog Page ~
~ My YouTube Channel ~
~ Suzuki Bandits Australia Facebook Page ~
~ Half hr from the hills. Two minutes from the coast ~

~ My Bikes ~
 VFR1200F - How Fast Do You Want To Tour?
MV Brutale 800 - Triple Treat
avatar
2wheelsagain
Admin

Posts : 6237
Join date : 2009-08-26
Age : 53
Location : Sale Area Vic

View user profile https://www.youtube.com/channel/UCU-axKVr_wDILSSK0-8GQ1A

Back to top Go down

Re: $1000 tl1000s project

Post  gus on Thu 15 Sep 2016, 8:16 pm

Only firing on rear cylinder . Removed fuel injectors to clean and one doesn't "click " with power supplied so it not opening .
Do I have to get one from Suzuki or are they an auto shop item ?
avatar
gus

Posts : 5493
Join date : 2010-11-23
Age : 66
Location : Cygnet ,Tasmania

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  BanditDave on Fri 16 Sep 2016, 7:04 am

Howdy Gus,
As I understand it, injectors are just another form of solenoid.
If you compare the resistance of the good one to the suspect one and it is similar, it might just need a bit of a soak in penetrating oil.
I'm also told that Suzuki injectors are interchangeable with several Ford car parts.
I can find out more if you need.

_________________
BanditDave
Hervey Bay, Queensland

2015 Suzuki DL650A
2014 Honda CBR650F

2009 Bandit 1250
2006 Bandit 1200
Suzuki VZ800 Marauder
avatar
BanditDave

Posts : 709
Join date : 2011-07-24
Age : 67
Location : Hervey Bay, Queensland

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  reddog on Fri 16 Sep 2016, 8:23 am

is it worth checking the wreckers?
avatar
reddog

Posts : 2420
Join date : 2010-09-27
Age : 39
Location : Allanson WA

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  Chook on Fri 16 Sep 2016, 11:49 am

reddog wrote:is it worth checking the wreckers?



depends how much a new one is
avatar
Chook

Posts : 3003
Join date : 2012-01-20
Age : 52
Location : Between the City and Beach, Adelaide

View user profile https://www.facebook.com/groups/154520904856/?fref=ts

Back to top Go down

Re: $1000 tl1000s project

Post  gus on Fri 16 Sep 2016, 3:06 pm

I soaked it overnight ,still no good . Seeing as it wasn't working I decided to probe it . affraid
The brass screen can be removed as I found out . This shows a hole going about 30mm into the injector .I  placed a thin wire into it and gave it a clean .

Replaced screen and it started working . This is sounding very familiar . Laughing
avatar
gus

Posts : 5493
Join date : 2010-11-23
Age : 66
Location : Cygnet ,Tasmania

View user profile

Back to top Go down

Re: $1000 tl1000s project

Post  Ironman on Fri 16 Sep 2016, 5:01 pm

Gus, you my friend are a bloody genius. and a talented one too.
I come across numerous injectors on a near daily basis. if you need something, ill see what i can find.

_________________
2012 V-Strom 1000
2007 Bandit S 1200
2004 Bandit S 1200 Tracker
avatar
Ironman

Posts : 651
Join date : 2010-10-09
Location : ACT

View user profile

Back to top Go down
