Thin paint n rust
sb1250 Sat 02 Aug 2014, 11:27 am
Just put my new rear tyre on and noticed rust on the frame!
The rust runs along the top of the pillion foot peg mtg brkt, and it's only on the left side.
Never had this on any of my previous steel framed bikes.
The rust runs along the top of the pillion foot peg mtg brkt, and it's only on the left side.
Never had this on any of my previous steel framed bikes.
sb1250- Posts : 586
Join date : 2011-07-11
Age : 53
Location : Greensborough, Victoria
Re: Thin paint n rust
2wheelsagain Sat 02 Aug 2014, 1:15 pm
Suzuki didnt use paint on the GSF1250 mate. I'm unsure what it is but I dont think anyone else calls it paint
2wheelsagain- Admin
- Posts : 6390
Join date : 2009-08-26
Age : 60
Location : Sale Area Vic -
Re: Thin paint n rust
Ewok1958 Sat 02 Aug 2014, 1:18 pm
There are several brands of rust converter around. Killrust makes one, then put on some primer, then a couple of coats of some real black paint. Killrust will be expensive for such a small area though. Hope there are more.
Ewok1958- Posts : 3940
Join date : 2010-08-03
Age : 66
Location : Bega, NSW
Re: Thin paint n rust
sb1250 Sat 02 Aug 2014, 1:30 pm
When the weather warms up a bit, I'll attack it with the rust converter I'm using on my other toy. I'd better be careful spraying real paint on one side....... The extra weight might pull the bike to the left!!
You're right Chris, worst excuse for paint EVER!!
You're right Chris, worst excuse for paint EVER!!
sb1250- Posts : 586
Join date : 2011-07-11
Age : 53
Location : Greensborough, Victoria
Re: Thin paint n rust
reddog Sat 02 Aug 2014, 3:10 pm
I have rust where the frame is welded near the foot pegs and near the radiator mounts. Have to find a matching paint for the silver frame and I'll rust concert prime and paint. May as well mask excepting possible and paint the whole frame so there at least one coat of decent paint:P
reddog- Posts : 2523
Join date : 2010-09-27
Age : 46
Location : Allanson WA
Rust AArgh . . .
truck Sun 14 Jun 2015, 7:56 pm
Hi All,
just looking through old threads for examples of fellow Bandit Brothers and Sisters who have found rust under the tank protector sticker? that sits at the back of the fuel tank and stops the tank from being scratched from belt buckles, flies etc.
I've got an old 2002 bandit and have removed the sticker and found what I condsider major rust on the fuel tank. A fellow rider has suggested I check the inside of the tank but I dont think that will be a problem as there is no weeping showing on the outside of the tank so it should not have rust on the inside - Yes?
Slipped into SuperCheap for paint.
Question: Do I need to use the 3 step paint they advertise (but I can only find the 3rd step in the store!), or is rust converter then top coat of gloss black from a paint can good enough as the old bandit wont win any shows.
Thanks all.
just looking through old threads for examples of fellow Bandit Brothers and Sisters who have found rust under the tank protector sticker? that sits at the back of the fuel tank and stops the tank from being scratched from belt buckles, flies etc.
I've got an old 2002 bandit and have removed the sticker and found what I condsider major rust on the fuel tank. A fellow rider has suggested I check the inside of the tank but I dont think that will be a problem as there is no weeping showing on the outside of the tank so it should not have rust on the inside - Yes?
Slipped into SuperCheap for paint.
Question: Do I need to use the 3 step paint they advertise (but I can only find the 3rd step in the store!), or is rust converter then top coat of gloss black from a paint can good enough as the old bandit wont win any shows.
Thanks all.
truck- Posts : 697
Join date : 2011-04-14
Age : 58
Location : Queensland Proud!!
Slow Going.
truck Tue 23 Jun 2015, 8:40 pm

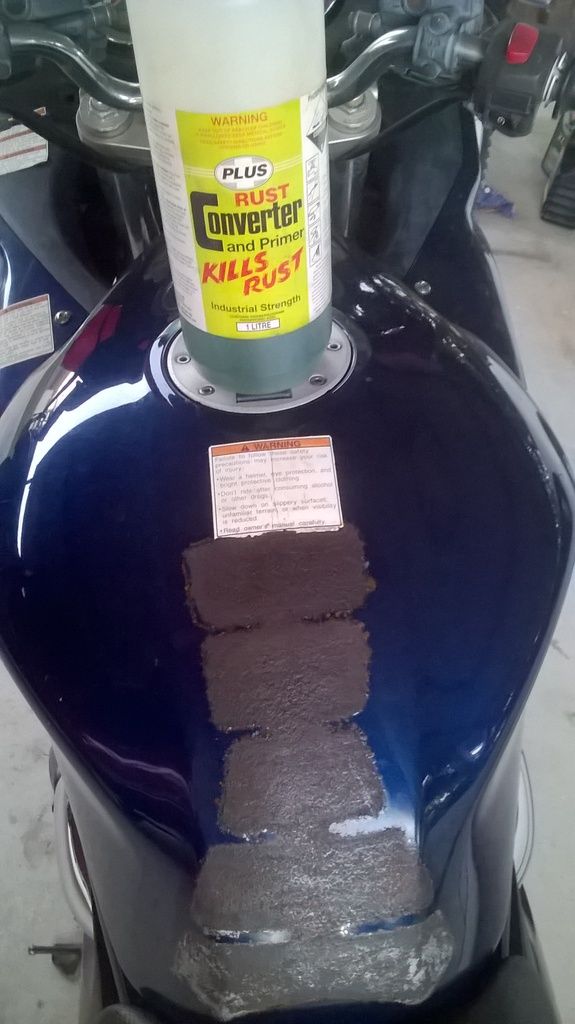

OK, I am trying this to stop the rust and then might paint the tank blue again or flat black just to personalize it a bit. Apologies if the picture is BIG but I cant remember how to upload to a reasonable size picture
truck- Posts : 697
Join date : 2011-04-14
Age : 58
Location : Queensland Proud!!
paul- Posts : 7740
Join date : 2011-08-19
Age : 72
Location : Morphett Vale Sth. Aust.
Re: Thin paint n rust
Chook Wed 24 Jun 2015, 6:14 am
I hadn't found a tank protector I relly liked so never got around to putting one on, looking at that I'm glad I didn't, think I'll just get it resprayed later if it gets too scratched
Chook- Posts : 4094
Join date : 2012-01-20
Age : 60
Location : Suburban Bendigo -
Re: Thin paint n rust
BanditDave Wed 24 Jun 2015, 6:50 am
I'm not convinced that any "sticky" that you put on your paintwork will not contain some sort of solvent that will do long term damage.
I have been using pieces of laminating film on my tank sourced from the local vinyl wrap shop.
I visited two shops enquiring about vinyl products and came away with a square metre of clear offcuts to play with. That should last me years.
The product I got is Oraguard 215 which I understand is similar to 3m and other brands. My samples are clear but it comes in a large range of colours and patterns.
Interestingly, on the 3m website it states that their product can be removed up to 3 years after applying without any paint damage but doesn't guarantee a good result beyond this date.
Because of the amount I have acquired I peel it off every 6 months and put on a fresh piece.
I have been using pieces of laminating film on my tank sourced from the local vinyl wrap shop.
I visited two shops enquiring about vinyl products and came away with a square metre of clear offcuts to play with. That should last me years.
The product I got is Oraguard 215 which I understand is similar to 3m and other brands. My samples are clear but it comes in a large range of colours and patterns.
Interestingly, on the 3m website it states that their product can be removed up to 3 years after applying without any paint damage but doesn't guarantee a good result beyond this date.
Because of the amount I have acquired I peel it off every 6 months and put on a fresh piece.
BanditDave- Posts : 917
Join date : 2011-07-24
Age : 74
Location : Tasmania, beautiful one day, perfect the next!
Re: Thin paint n rust
madmax Wed 24 Jun 2015, 8:06 am
truck wrote:Question: Do I need to use the 3 step paint they advertise (but I can only find the 3rd step in the store!), or is rust converter then top coat of gloss black from a paint can good enough as the old bandit wont win any shows.
Thanks all.
It should be; rust converter - primer - top coat - clear coat.
madmax- Posts : 4307
Join date : 2011-10-19
Age : 60
Location : Carrum Downs, Victoria
Re: Thin paint n rust
madmax Wed 24 Jun 2015, 8:09 am
My tank protector is clear so I'd like to hope if there is any rust developing underneath it I'd see it.
Also using two pieces of clear vinyl on the sides of the tank
Truck how long was the tank protector on there?
Also using two pieces of clear vinyl on the sides of the tank
Truck how long was the tank protector on there?
madmax- Posts : 4307
Join date : 2011-10-19
Age : 60
Location : Carrum Downs, Victoria
Re: Thin paint n rust
Hammy Wed 24 Jun 2015, 9:38 am
Can't tell for sure. But that looks like some really bad pitting. I would be looking for a 2nd hand tank. You might even get lucky and score a blue one. Best of luck.
Hammy- Posts : 4446
Join date : 2011-08-09
Age : 65
Location : The Rock
Re: Thin paint n rust
truck Wed 24 Jun 2015, 11:37 am
Thanks MM for the order of paint application.
I bought the old girl in about 2006 and its been on since I've had it. It just flaked off when I removed it.
Hammy - it is as bad as it can get but it has no seepage so I am going to stick with the tank and give it a paint job.
I bought the old girl in about 2006 and its been on since I've had it. It just flaked off when I removed it.
Hammy - it is as bad as it can get but it has no seepage so I am going to stick with the tank and give it a paint job.
truck- Posts : 697
Join date : 2011-04-14
Age : 58
Location : Queensland Proud!!
Re: Thin paint n rust
paul Wed 24 Jun 2015, 6:17 pm
These things can lift / come unstuck sometimes depending on the brand ...................I wonder if the previous owner re-glued it back on with a different type of glue
Are you going to bog it up to smooth the rough bits over ?
Are you going to bog it up to smooth the rough bits over ?
paul- Posts : 7740
Join date : 2011-08-19
Age : 72
Location : Morphett Vale Sth. Aust.
Re: Thin paint n rust
Hammy Thu 25 Jun 2015, 6:10 am
To do it properly you know that you will have to grind/sand back to bare metal. Who knows how thin the metal will be then ? Scary.
Hammy- Posts : 4446
Join date : 2011-08-09
Age : 65
Location : The Rock
Re: Thin paint n rust
reddog Thu 25 Jun 2015, 8:15 am
There's a great thread on asb on an r1 fuel tank repair http://www.aussiestreetbikes.com/forum/showthread.php?t=30283
reddog- Posts : 2523
Join date : 2010-09-27
Age : 46
Location : Allanson WA
Re: Thin paint n rust
madmax Thu 25 Jun 2015, 2:29 pm
reddog wrote:There's a great thread on asb on an r1 fuel tank repair http://www.aussiestreetbikes.com/forum/showthread.php?t=30283
don't sand it that much that you go through the metal(it could happen quite easily)
This guy is scary
or in my case filling a dent about 10mm deep.
I guess no magnetic tank bag for this guy
a few high spots from where I got a bit carried away with my stick bashing so I just give them a little tappity tap tap with a hammer before my second bog application
Thank god he's in WA and I'm not likely to ever use him
madmax- Posts : 4307
Join date : 2011-10-19
Age : 60
Location : Carrum Downs, Victoria
Re: Thin paint n rust
reddog Thu 25 Jun 2015, 2:48 pm
It's for his dirt drag r1 which he has nitrous fitted
reddog- Posts : 2523
Join date : 2010-09-27
Age : 46
Location : Allanson WA
Re: Thin paint n rust
madmax Thu 25 Jun 2015, 3:56 pm
reddog wrote:It's for his dirt drag r1 which he has nitrous fitted
I'm just referring to his abilities as a panel beater.
madmax- Posts : 4307
Join date : 2011-10-19
Age : 60
Location : Carrum Downs, Victoria
Re: Thin paint n rust
reddog Thu 25 Jun 2015, 8:30 pm
I reckon from the wreck he was working from he made a silk purse out of a sows ear. I'd certainly use the guy for paint, he knows what he is doing.
reddog- Posts : 2523
Join date : 2010-09-27
Age : 46
Location : Allanson WA
Re: Thin paint n rust
Chook Thu 25 Jun 2015, 9:18 pm
rough as guts panel beating, he should let someone that knows what they're doing do the straightening, if you need that much bog it's either too far gone to fix or he has no idea.
Chook- Posts : 4094
Join date : 2012-01-20
Age : 60
Location : Suburban Bendigo -
Re: Thin paint n rust
madmax Thu 25 Jun 2015, 9:41 pm
Chook wrote:rough as guts panel beating, he should let someone that knows what they're doing do the straightening, if you need that much bog it's either too far gone to fix or he has no idea.
madmax- Posts : 4307
Join date : 2011-10-19
Age : 60
Location : Carrum Downs, Victoria
Re: Thin paint n rust
reddog Thu 25 Jun 2015, 11:05 pm

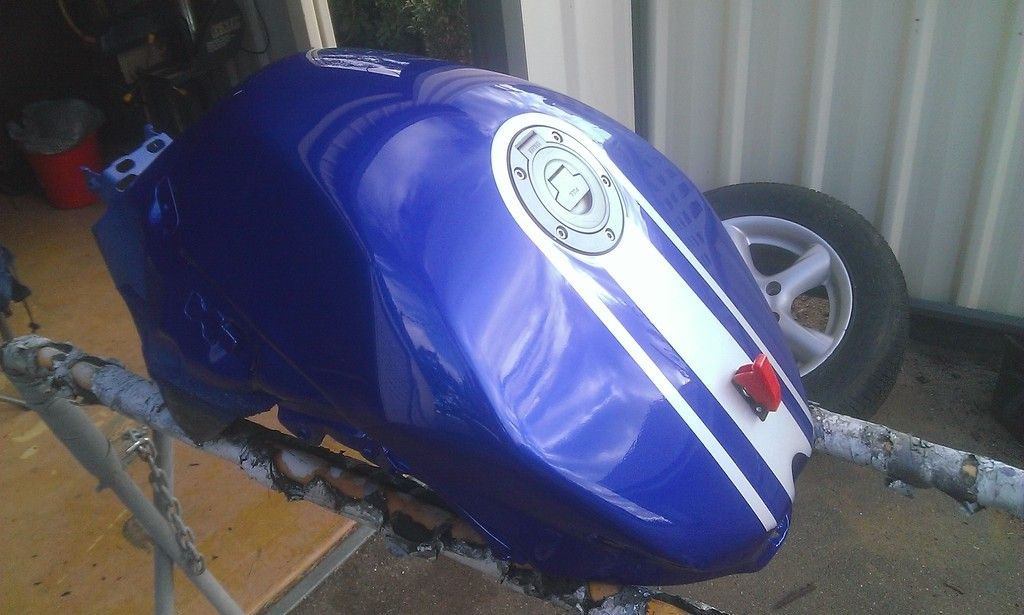

I wouldn't have bothered, but he is a painter by trade I believe so paint etc is cheap. Buying a new tank would've been a cheaper option for most of us

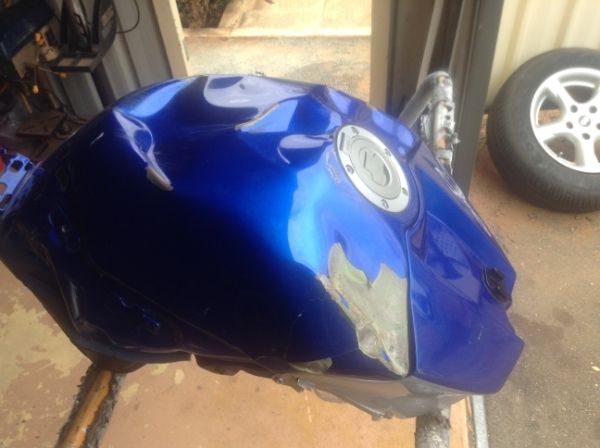

The tank was trashed
Not a bad finish though
The tank was trashed
Not a bad finish though
reddog- Posts : 2523
Join date : 2010-09-27
Age : 46
Location : Allanson WA
Re: Thin paint n rust
Chook Fri 26 Jun 2015, 5:48 am
I'd like to see it in the flesh, not sure if it's reflections I can see or orange peel and other imperfections
Chook- Posts : 4094
Join date : 2012-01-20
Age : 60
Location : Suburban Bendigo -
