A electrifying question?

Post  Rustic on Thu 13 Jun 2013, 6:21 pm

Evening all,

So I reached into the pockets and lashed out to buy a new Toyota Hilux ute. Usual story, got all the farkles but drew the line at them wanting to charge $450 to put in an additional a/c socket to the left of the existing one.

My question is - Can I just run a couple of wires from the existing socket to a new one? Distance will be about 4 inches? or am I just being a tight ass Wink

Thoughts

_________________

The More People I Meet
The More I like My Dog
avatar
Rustic

Posts : 313
Join date : 2012-01-09
Location : GSX1250FA

View user profile http://s1165.photobucket.com/profile/Rustic101/index

Back to top Go down

Re: A electrifying question?

Post  mtbeerwah on Thu 13 Jun 2013, 6:37 pm

I`m no sparkie, and I`m sure someone here will give you the low down on tech info, but, it depends what your running. If you were to run two fridges from what you want to do, you`ll blow a fuse due to over load. If your charging two phones, no issue.
What do you want to run?

I always do my own work, and wouldn`t pay someone to run another line.
avatar
mtbeerwah

Posts : 1588
Join date : 2010-02-20
Location : Gladstone

View user profile

Back to top Go down

Re: A electrifying question?

Post  Rustic on Thu 13 Jun 2013, 6:44 pm

Good point!

Just to charge the phone,lap top, safety warning device etc. Nothing with a high draw(?)drain Possibly a heated coffee mug would be the worse plugged in

_________________

The More People I Meet
The More I like My Dog
avatar
Rustic

Posts : 313
Join date : 2012-01-09
Location : GSX1250FA

View user profile http://s1165.photobucket.com/profile/Rustic101/index

Back to top Go down

Re: A electrifying question?

Post  mtbeerwah on Thu 13 Jun 2013, 6:47 pm

you can buy double adapter style ac plugs from super cheap type stores
avatar
mtbeerwah

Posts : 1588
Join date : 2010-02-20
Location : Gladstone

View user profile

Back to top Go down

Re: A electrifying question?

Post  Rustic on Thu 13 Jun 2013, 7:24 pm

Thought about those but I find them untidy

_________________

The More People I Meet
The More I like My Dog
avatar
Rustic

Posts : 313
Join date : 2012-01-09
Location : GSX1250FA

View user profile http://s1165.photobucket.com/profile/Rustic101/index

Back to top Go down

Re: A electrifying question?

Post  reddog on Thu 13 Jun 2013, 8:02 pm

Pic please. Should be piece of piss
avatar
reddog

Posts : 2420
Join date : 2010-09-27
Age : 39
Location : Allanson WA

View user profile

Back to top Go down

Re: A electrifying question?

Post  barry_mcki on Thu 13 Jun 2013, 9:15 pm

Although you said you didn't like the adapter style, it is the simplist and probably the cheapest solution.  Things have improved a bit from the older style that had the adapter outlet direcly in the dash socket, Jaycar sells this type of adapter for about $20:



Putting a second socket into the dash can be cumbersome, there is a fair bit of pressure on the socket pushing in and removing the plug, if you were doing that continiously just using the dash plastic to secure the socket mount it could soon break from fatigue.  However if there is a blank space to mount the factory additional socket that makes it a bit easier to install.

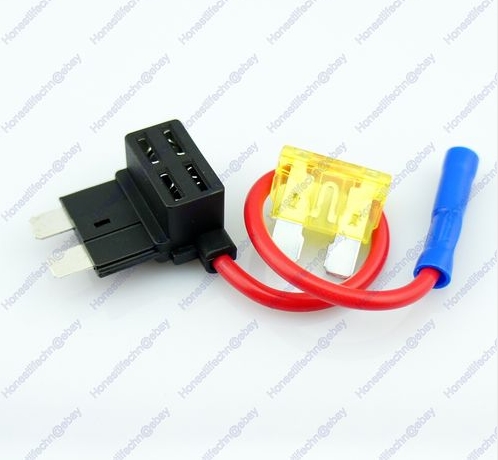

As mentioned it should be wired back to the fuse box.  The wiring is pretty simple, the outside of the cigarette socket goes to chassis earth and the centre pin to positive 12v.  Depending on where in the fuse box you connect up to you can have it work only with IGN on, ACC, or always on. For tapping into the fuse box, there are these type of connectors available now, makes life a lot easier:


_________________
Hacks - more smiles per mile



Red 2007 GSF-1250S with SRK Premier Sidecar
avatar
barry_mcki

Posts : 1626
Join date : 2010-04-10
Age : 60
Location : Hillwood, Tasmania

View user profile http://g.co/maps/vb84k

Back to top Go down

Re: A electrifying question?

Post  Ewok1958 on Thu 13 Jun 2013, 9:29 pm

Those fuse box connectors look neat - I've not seen those before.
avatar
Ewok1958

Posts : 3771
Join date : 2010-08-03
Age : 59
Location : Bemboka, NSW

View user profile

Back to top Go down

Re: A electrifying question?

Post  barry_mcki on Thu 13 Jun 2013, 11:15 pm

Ewok1958 wrote:Those fuse box connectors look neat - I've not seen those before.










A couple of sellers on the Web, ebay, etc have them now.  Look up "Piggy Back Fuse",  here's one site I like dealing with site.

_________________
Hacks - more smiles per mile



Red 2007 GSF-1250S with SRK Premier Sidecar
avatar
barry_mcki

Posts : 1626
Join date : 2010-04-10
Age : 60
Location : Hillwood, Tasmania

View user profile http://g.co/maps/vb84k

Back to top Go down

Re: A electrifying question?

Post  Kaupy1962 on Fri 14 Jun 2013, 8:16 pm

Yep you can
avatar
Kaupy1962

Posts : 1051
Join date : 2011-06-22
Age : 55

View user profile

Back to top Go down

Re: A electrifying question?

Post  Ewok1958 on Fri 14 Jun 2013, 8:26 pm

barry_mcki wrote:
Ewok1958 wrote:Those fuse box connectors look neat - I've not seen those before.

Thanks Barry - much appreciated.








A couple of sellers on the Web, ebay, etc have them now.  Look up "Piggy Back Fuse",  here's one site I like dealing with site.
